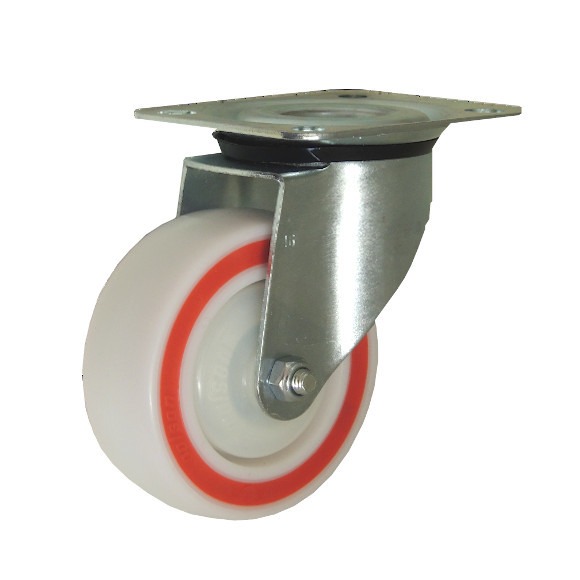

Français SANDWICH WHEEL WITH SWIVEL SUPPORT
Sandwich wheel made of thick nylon and polyurethane with a roller bearing hub assembled on a galvanized steel swivel castor. This type of wheel is equipped in the center with a shock-absorbing polyurethane ring that makes the wheel quiet in sliding and provides resistance against shocks. The sandwich wheel with thick nylon ensures the high strength of the trolley.
| Diameter (mm) | Width (mm) | Total height (mm) | External plate dimensions (mm) | Fixing hole spacing (mm) | Plate hole diameter (mm) | Capacity (Kg) | hf:att:pa_diameter | hf:att:pa_width | hf:att:pa_height-total | hf:att:pa_dimensions-outside-plate | hf:att:pa_spacing-hole-fixing | hf:att:pa_diameter-hole-plate | hf:att:pa_flow rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 32 | 128 | 105x85 | 80x60 | 9 | 150 | 100 | 32 | 128 | 105x85 | 80x60 | 9 | 150 |
| 125 | 35 | 155 | 105x85 | 80x60 | 9 | 180 | 125 | 35 | 155 | 105x85 | 80x60 | 9 | 180 |
